Uno glide
-
Product Information
Glide mechanism for recliner chair with wooden U-bow, with adjustable friction.
-
Name

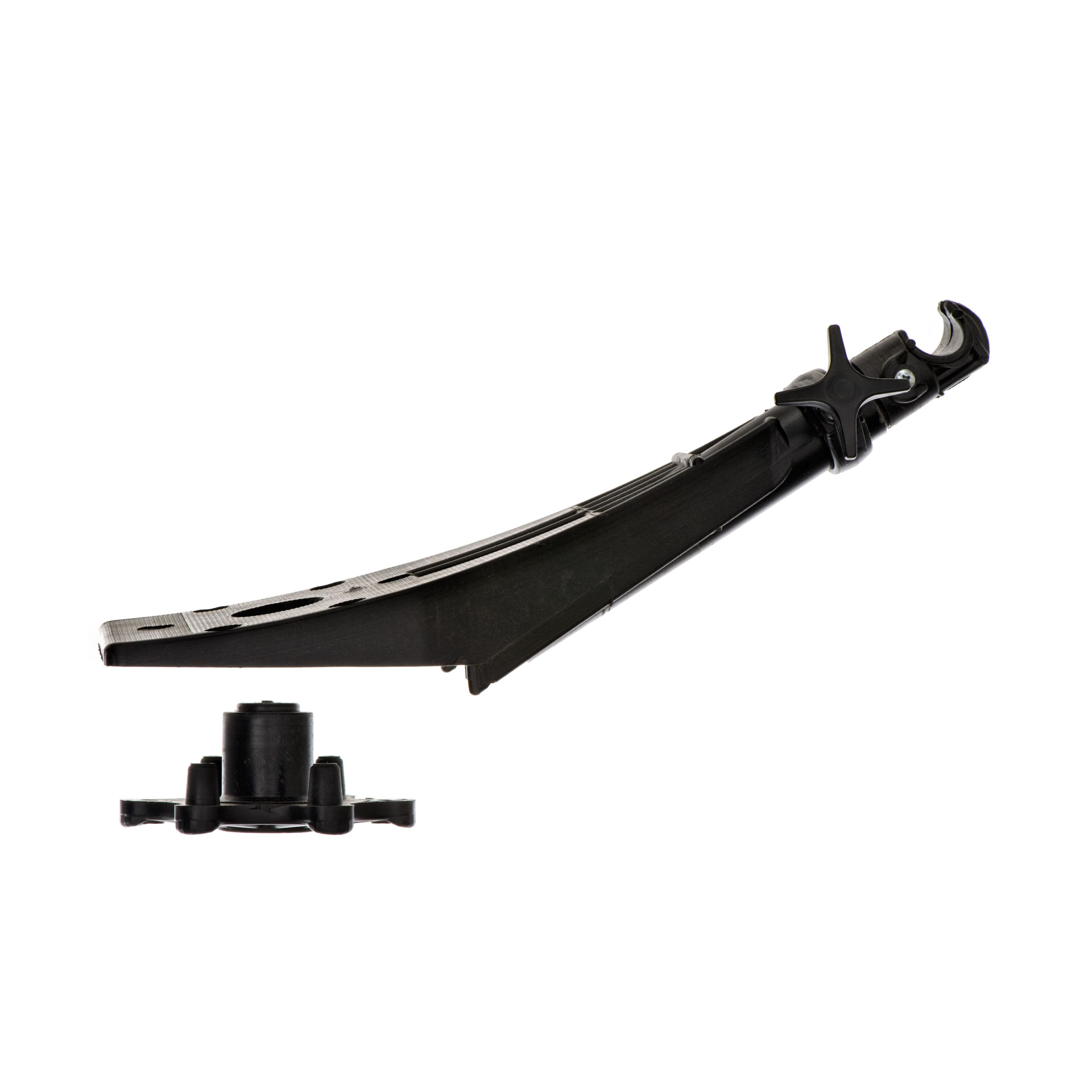

Uno glide mechanism
-
Product code
336 503
-
Cake fastening cone
-
336 950
Specifications
Material: composite
Color: black
Gliding function to be adjusted by a knob
Screws included
Options
Customized hook (fastening method to metal frame) on request

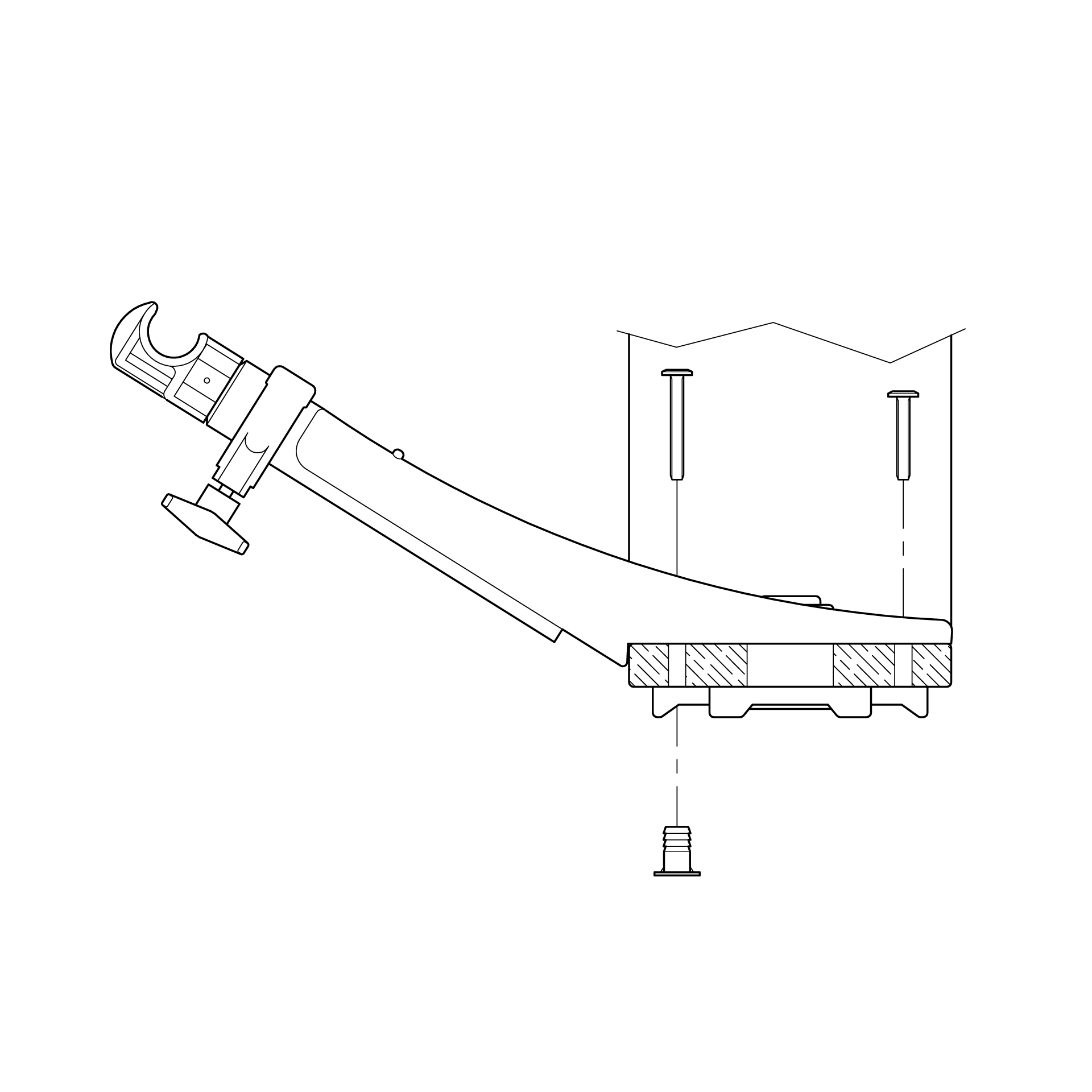

Assembling instructions
Assembling to wooden U-bow (1): 3pcs M6*40 and 3pcs M6*50mm
Assembling to metal frame frame (2): by pressing frame into the hook
Assembling to Cake fastening cone (3): 6pcs M6*14 645A006014N

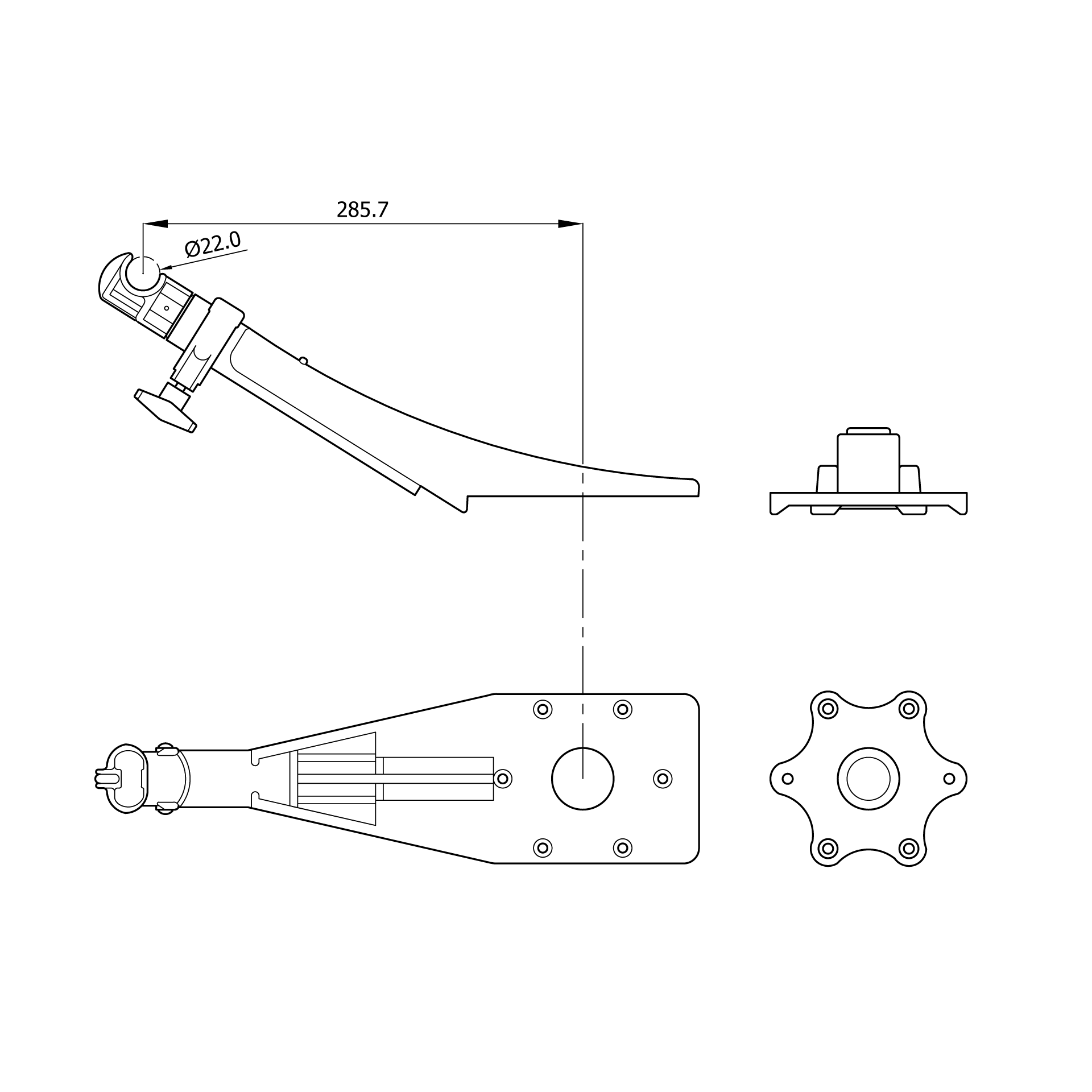

Hole picture, see page 33 Technical Details
-
-

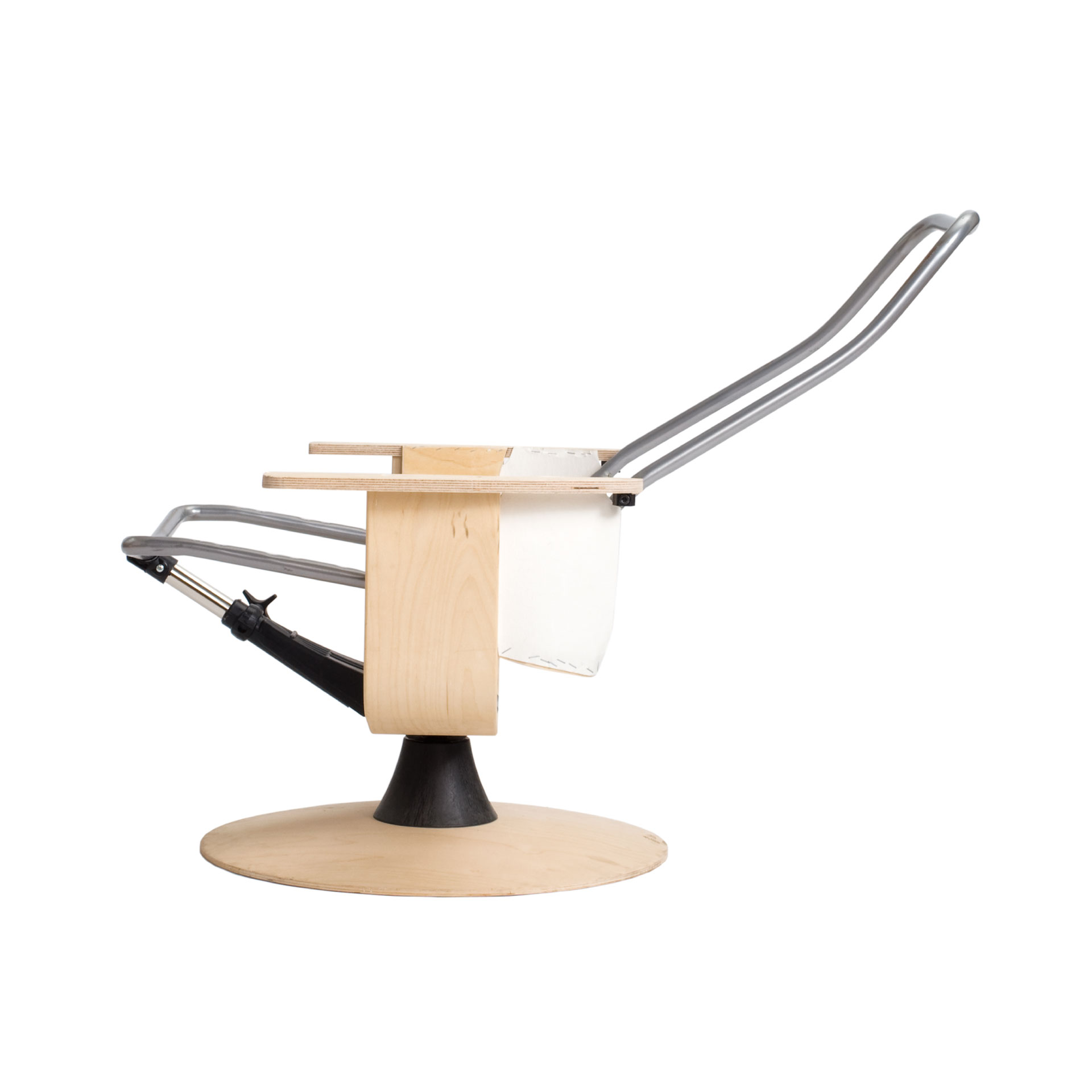

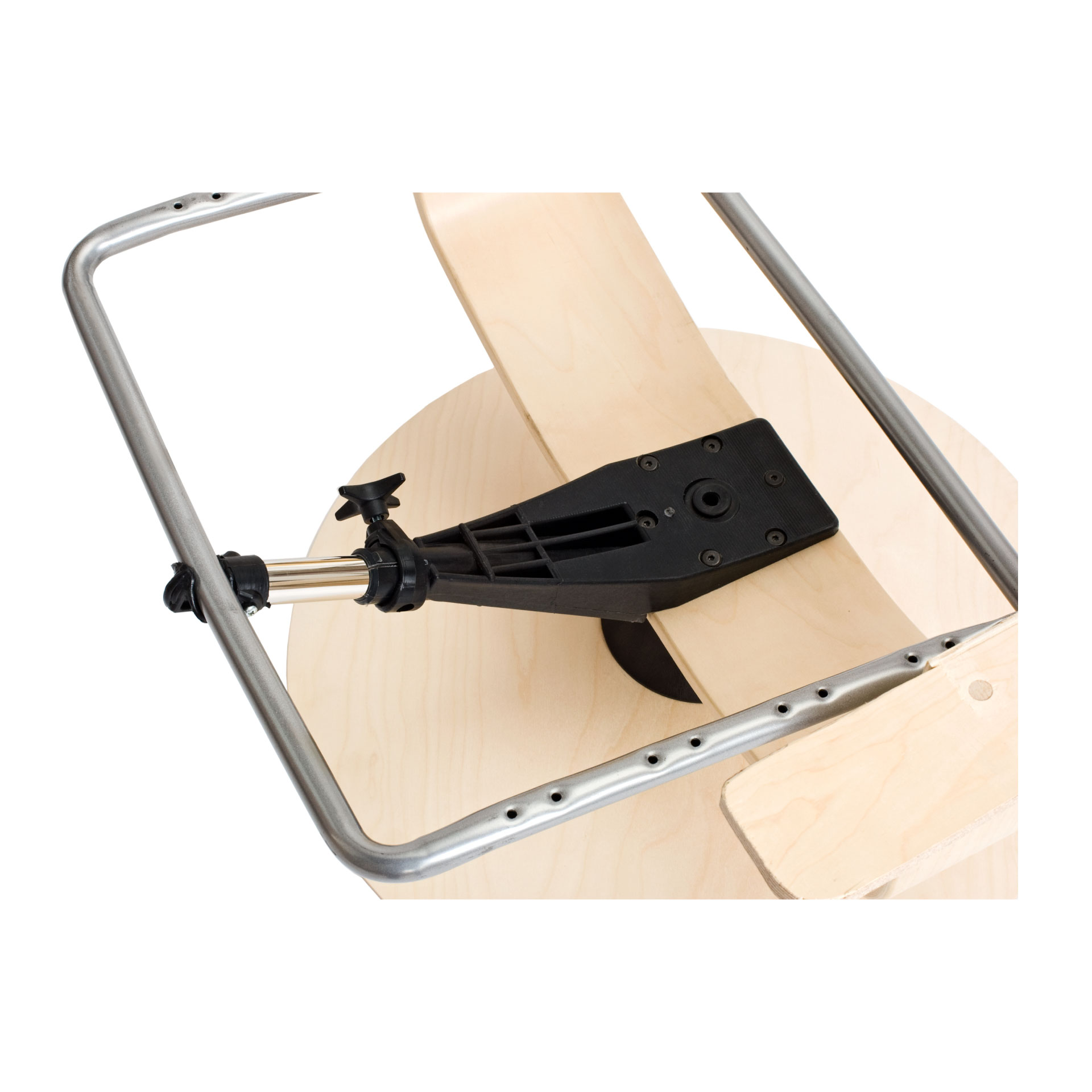

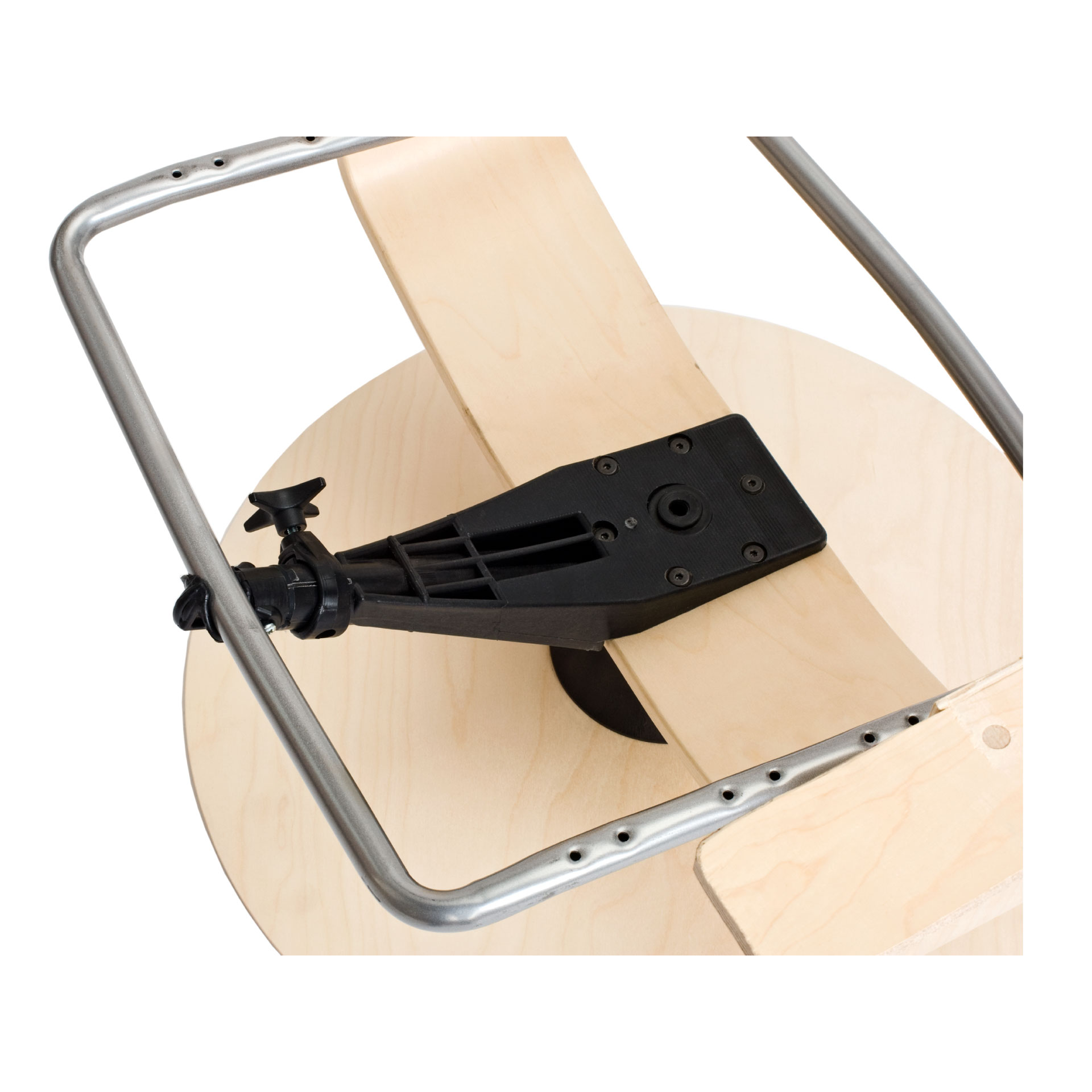

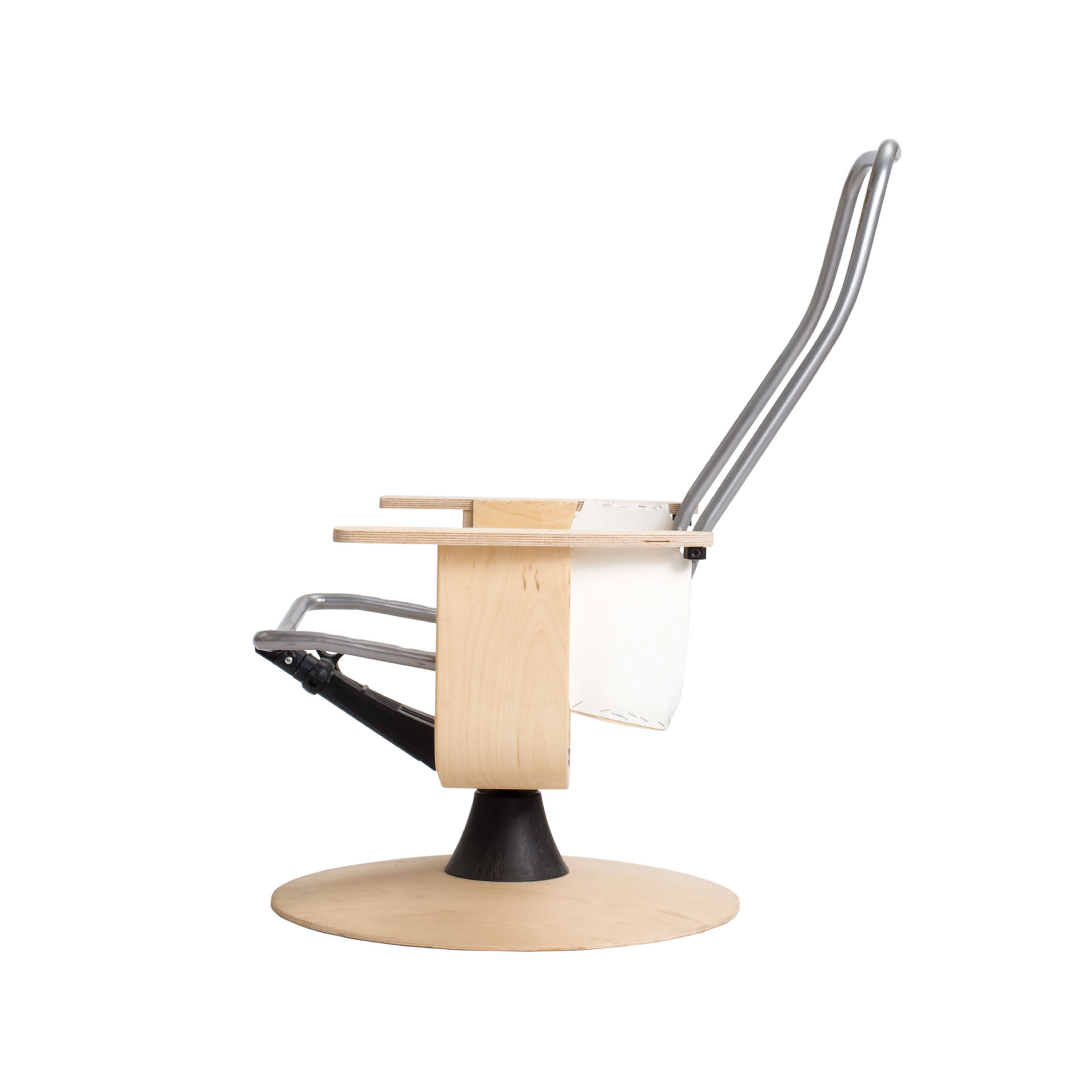

Inspiration and Assembling
Download printer-friendly product sheet
Read here by clicking above or download from the link below.
mekrapid_2024_Uno-glide.pdf [129.1 kB]
-
