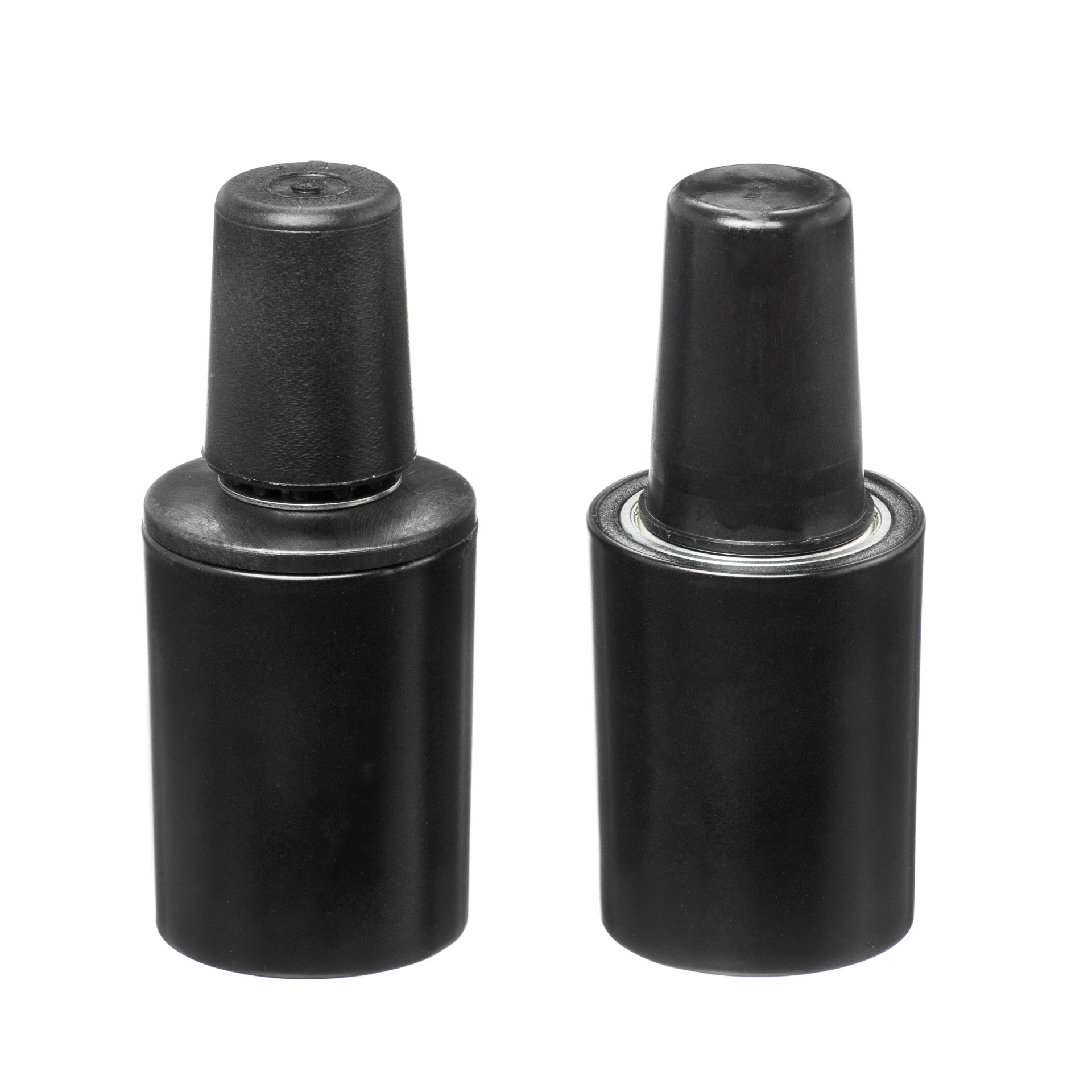

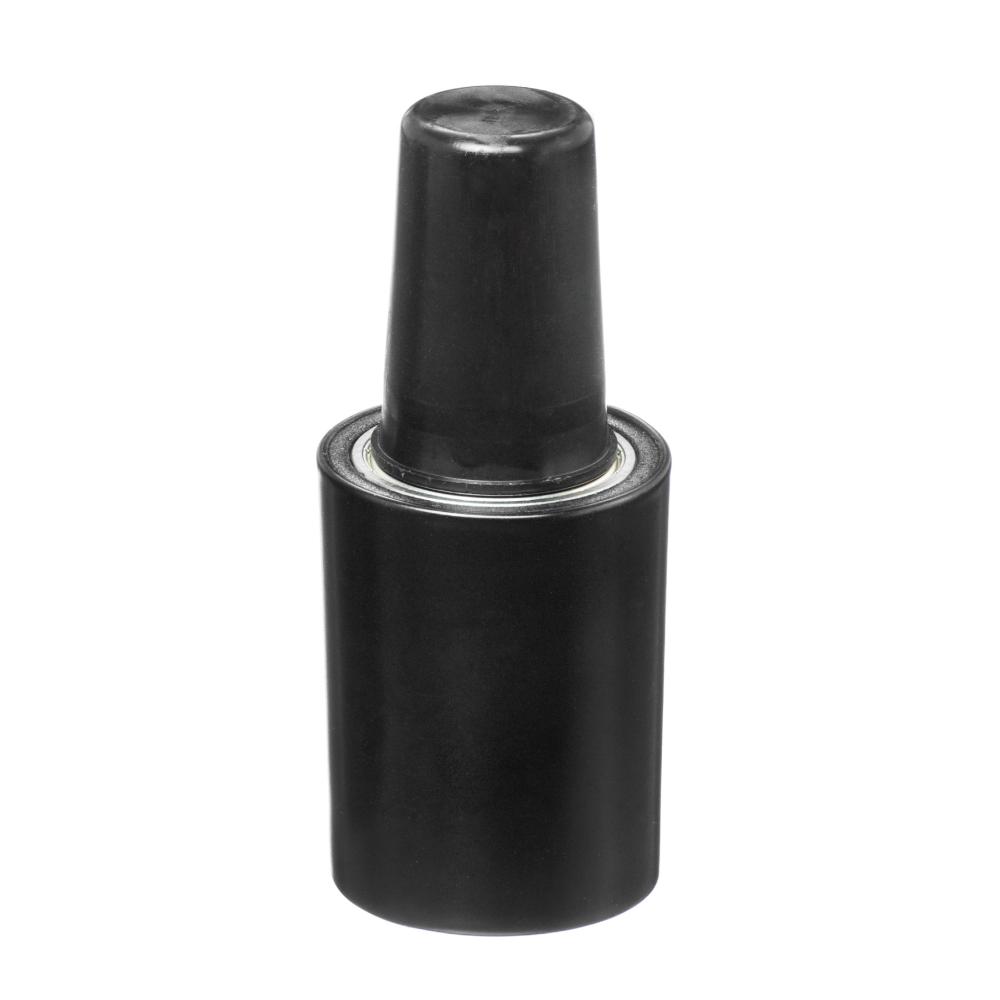

Origo 4Stop swivel
-
Origo 4Stop swivel
The 4Stop swivel keeps the seat aligned perfectly with the chair base, making it ideal for chairs with four casters or symmetric legs.
Easily integrated into a standard base with a 50mm center hole, the 4Stop adds only 15mm to the chair height.
For insight into how the Auto Return with 4 Stops function works, please visit the page at the link below.
Experience - Auto return with release [w/ video]Built for longevity, Origo 4Stop swivel - as all Mekrapid chair swivels, requires no technical maintenance and complies with European REACH regulations.
Made in Finland, each swivel is quality-checked in our factory to ensure enduring performance alongside your chair.
More about our swivels durability click here!
-
Available as

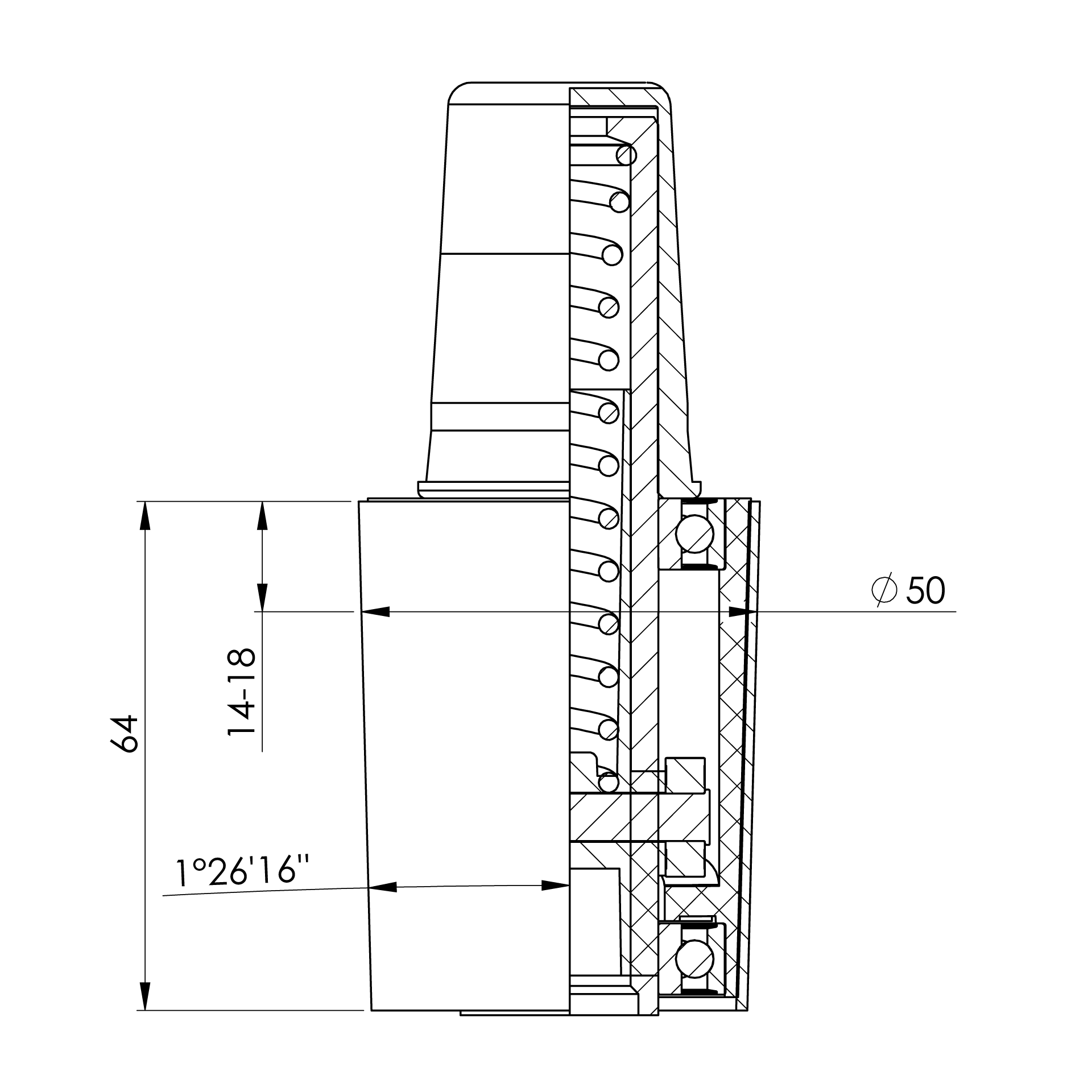

Automatic return mechanism with 4Stop-function (every 90°), adaptable for a high base with castors and center hole ⌀50 mm with taper 1°26'16".
-
Name
Product Code
Available As
-
Origo 4Stop swivel automatic return >360°
850 400
Smart Swivel
Specifications
Material: metal and POM
Color: black
1°26'16"
REACH-compliant
Outer metal tube with black painted surface
Swivel height over base surface approx. 15mm
Options
Upper Cone
Other cones available on request
Without outer metal tube
-
-
Origo 4stop Inside
Technical Support
Ask for our assembly instructions
Technical Questions?
Do you need technical support related to our products, their assembly or other technical inquiries?
Please get in touch with Mekrapid's technical team by the e-mail address below:
techsupport(at)mekrapid.fi
Download printer-friendly product sheet
Read here by clicking above or download from the link below.
Origo 4Stop swivel - product sheet [pdf] [559.0 kB]
-
