Piccolo fastening disc
-
Product Information

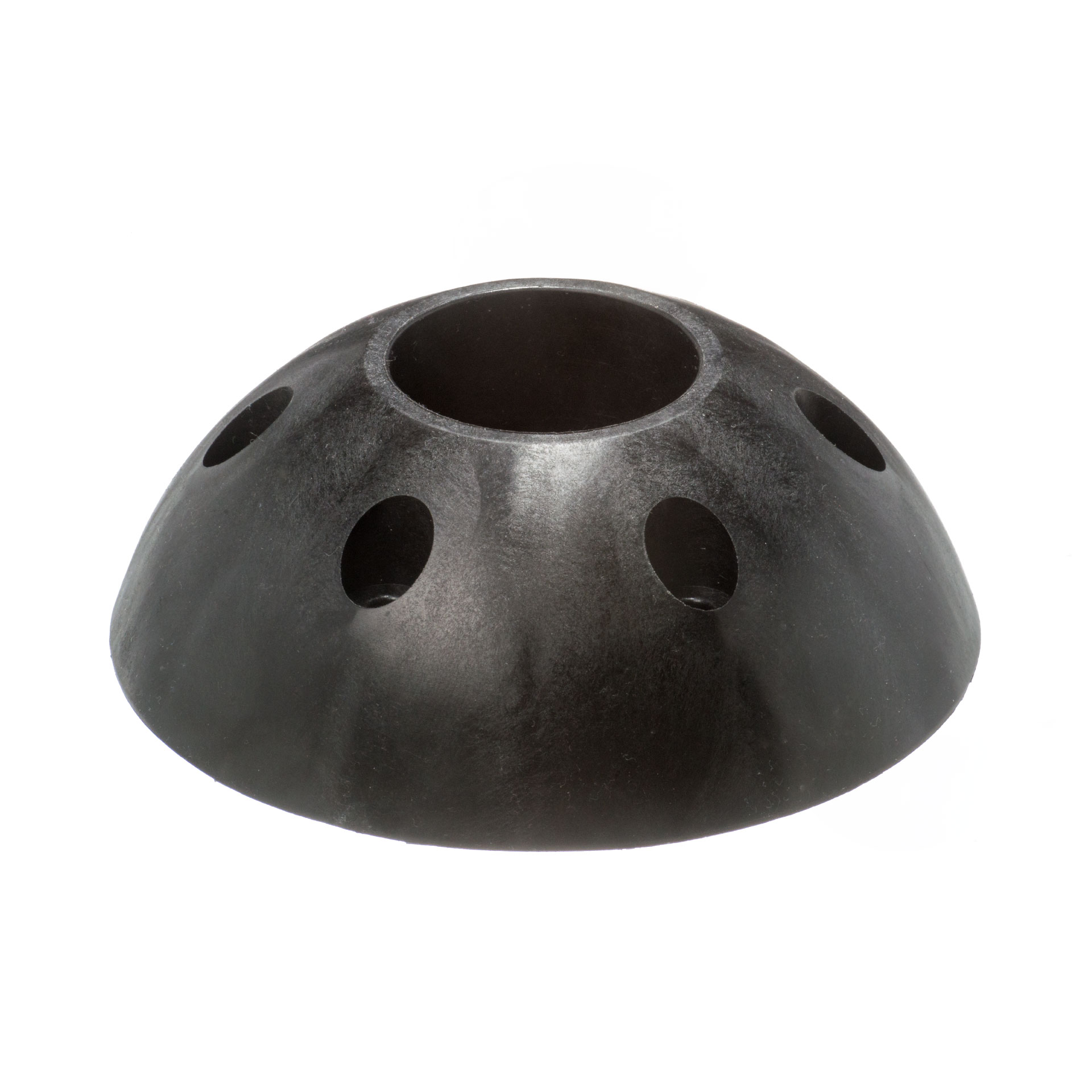

Fastening disc for Piccolo swivels. Use this disc right under the chair seat, together with Piccolo swivel assembled upside down. The combination allows a center tube for your chair with diameter of only 35...38mm.
-
Name
Fastening disc for Piccolo
-
Product code
336 510
Specifications
Material: composite.
Color: black.
REACH -compliant
Options
Fastening from above with 6pcs wooden screws minimum length 5.0*50/30mm, or from below with 6sets screws M6*50mm and pronged t-nut M6.

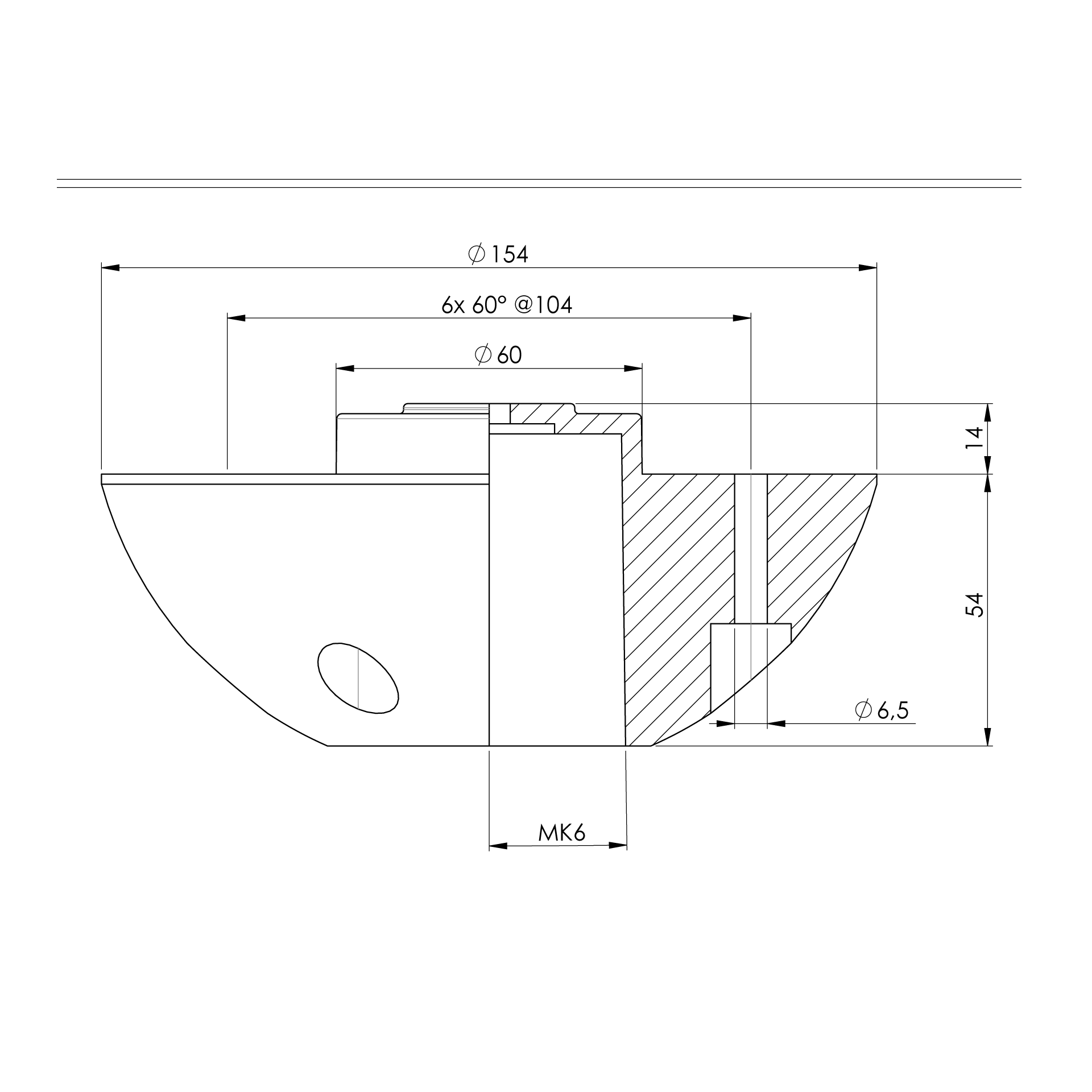

Ask for our assembly drawings!
-
-

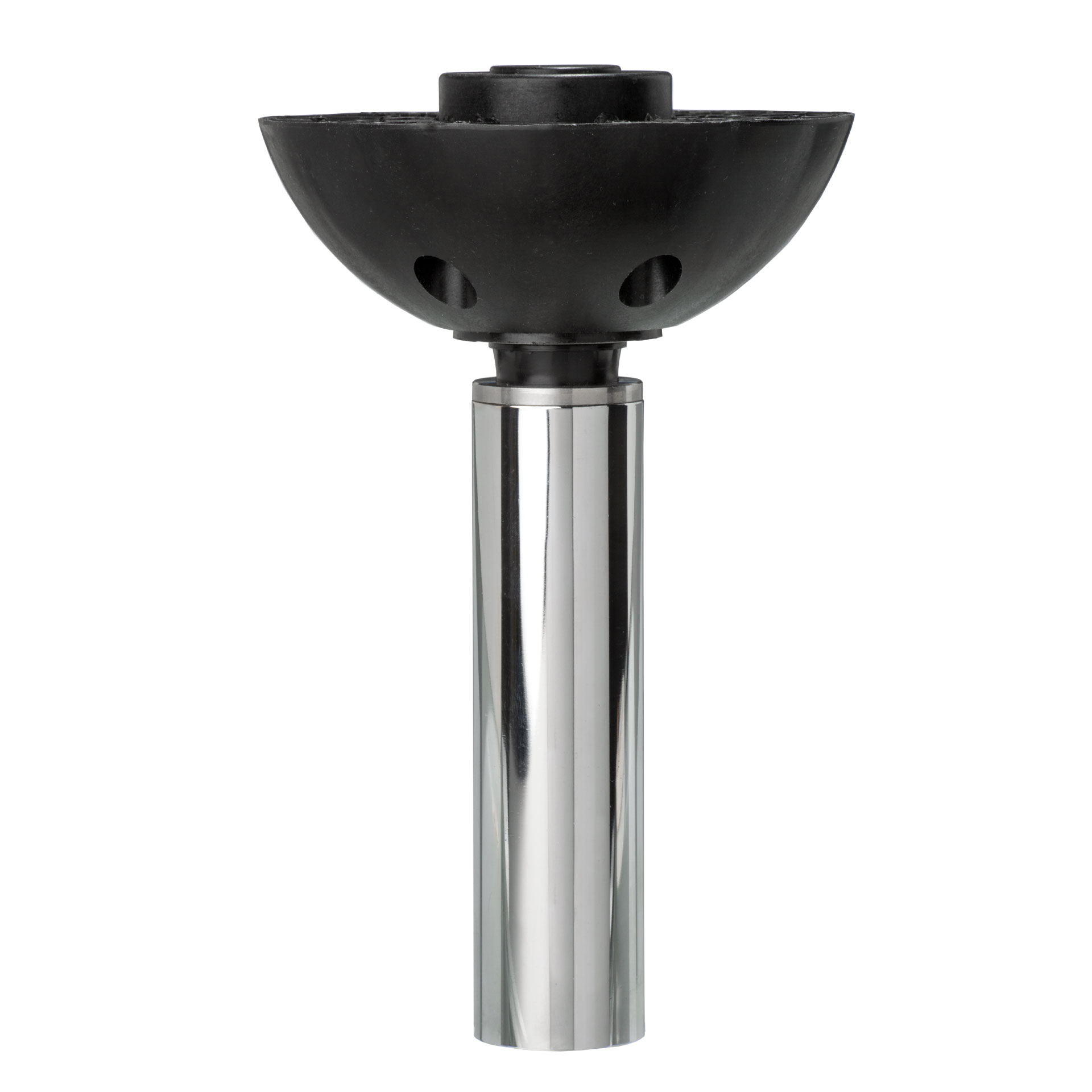

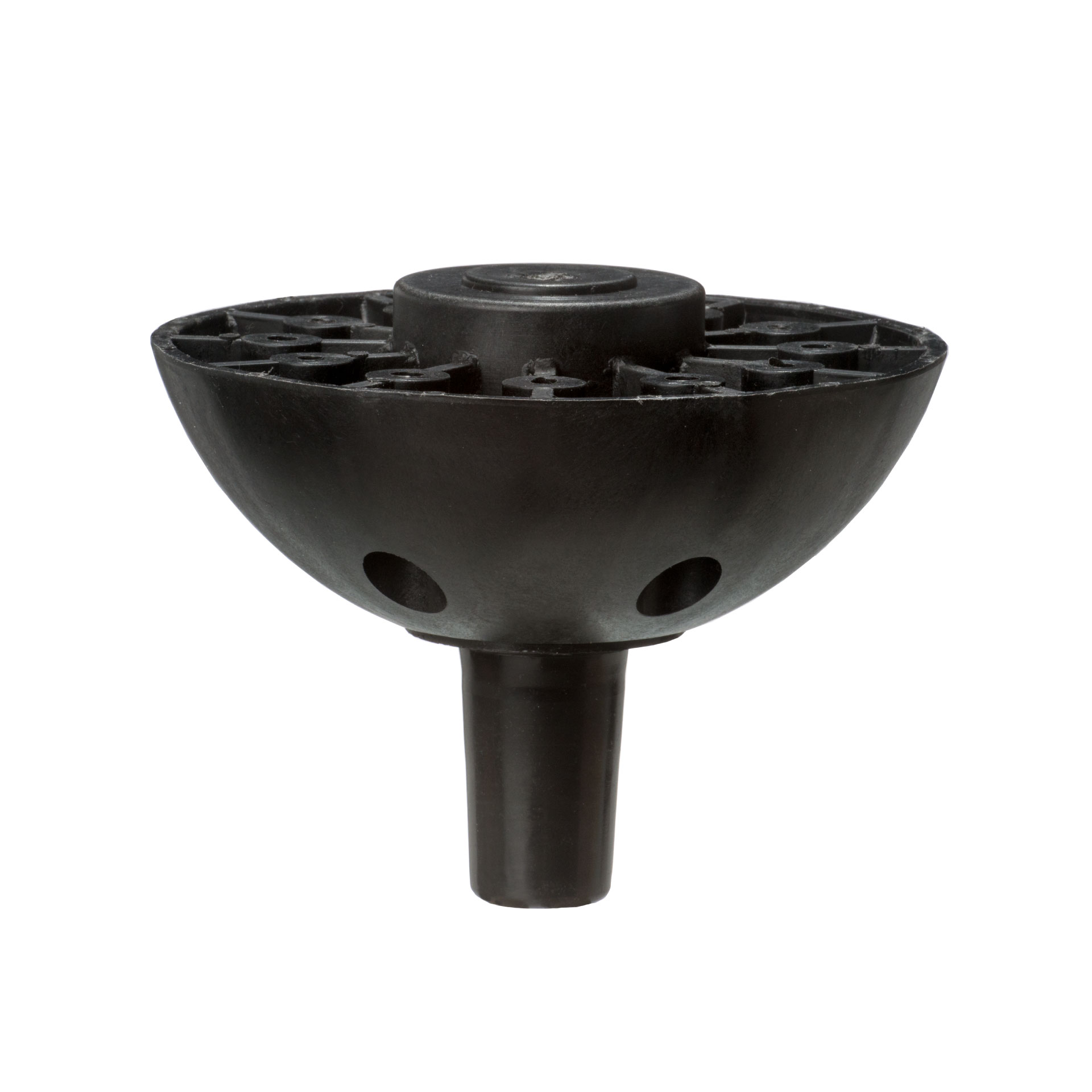

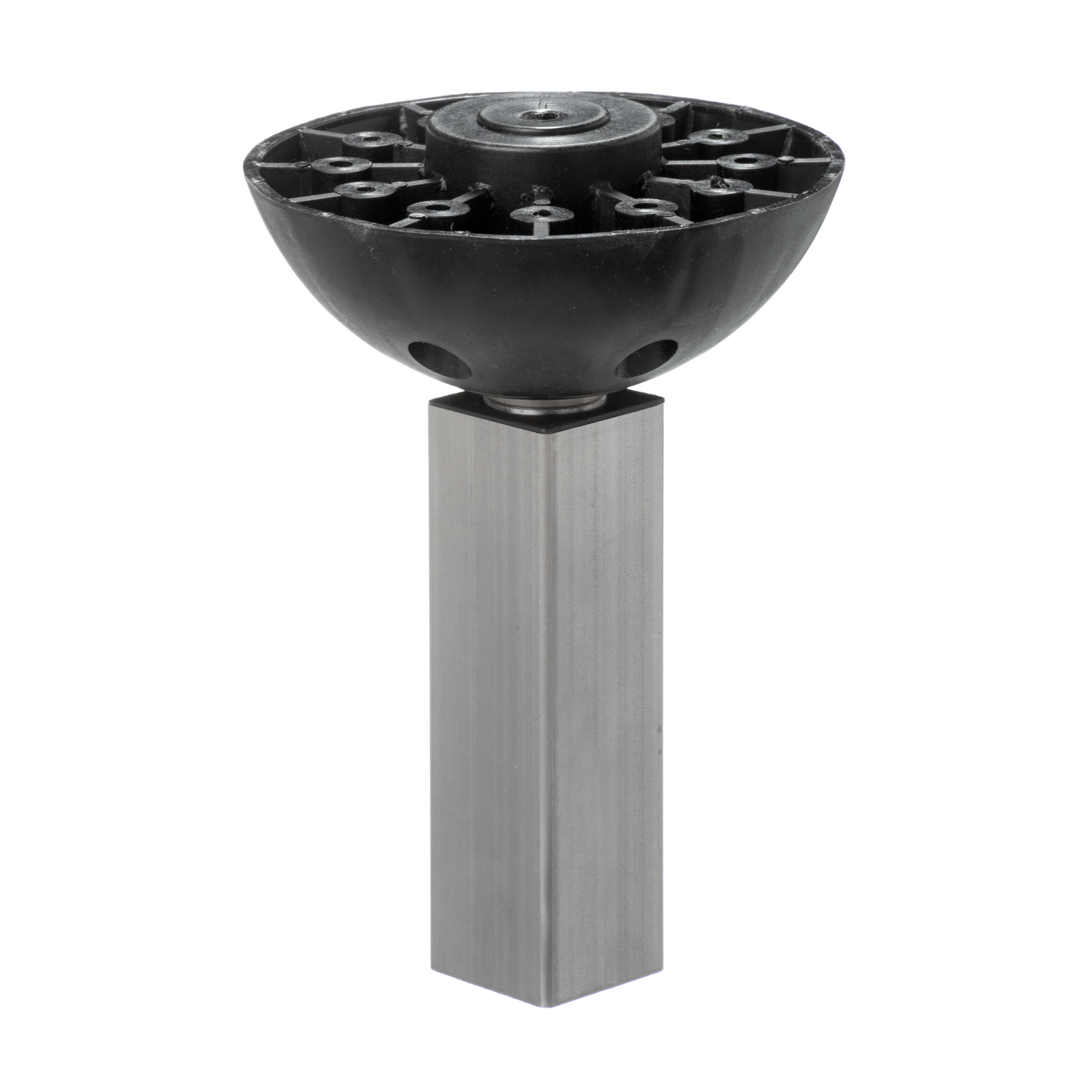

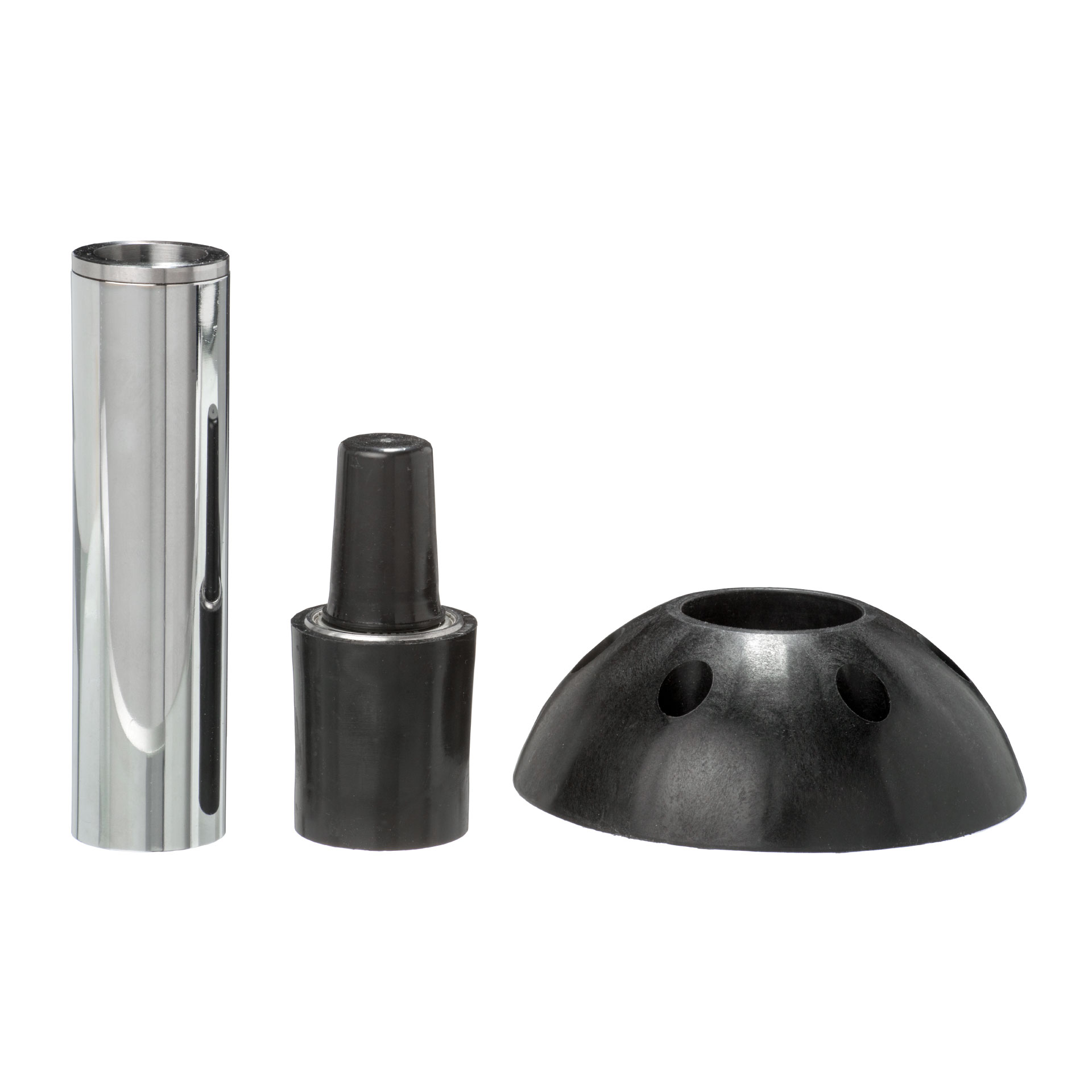

Inspiration and Assembling
Download printer-friendly product sheet
Read here by clicking above or download from the link below.
Piccolo Fastening disc - product sheet [pdf] [130.5 kB]
-
Gallery
