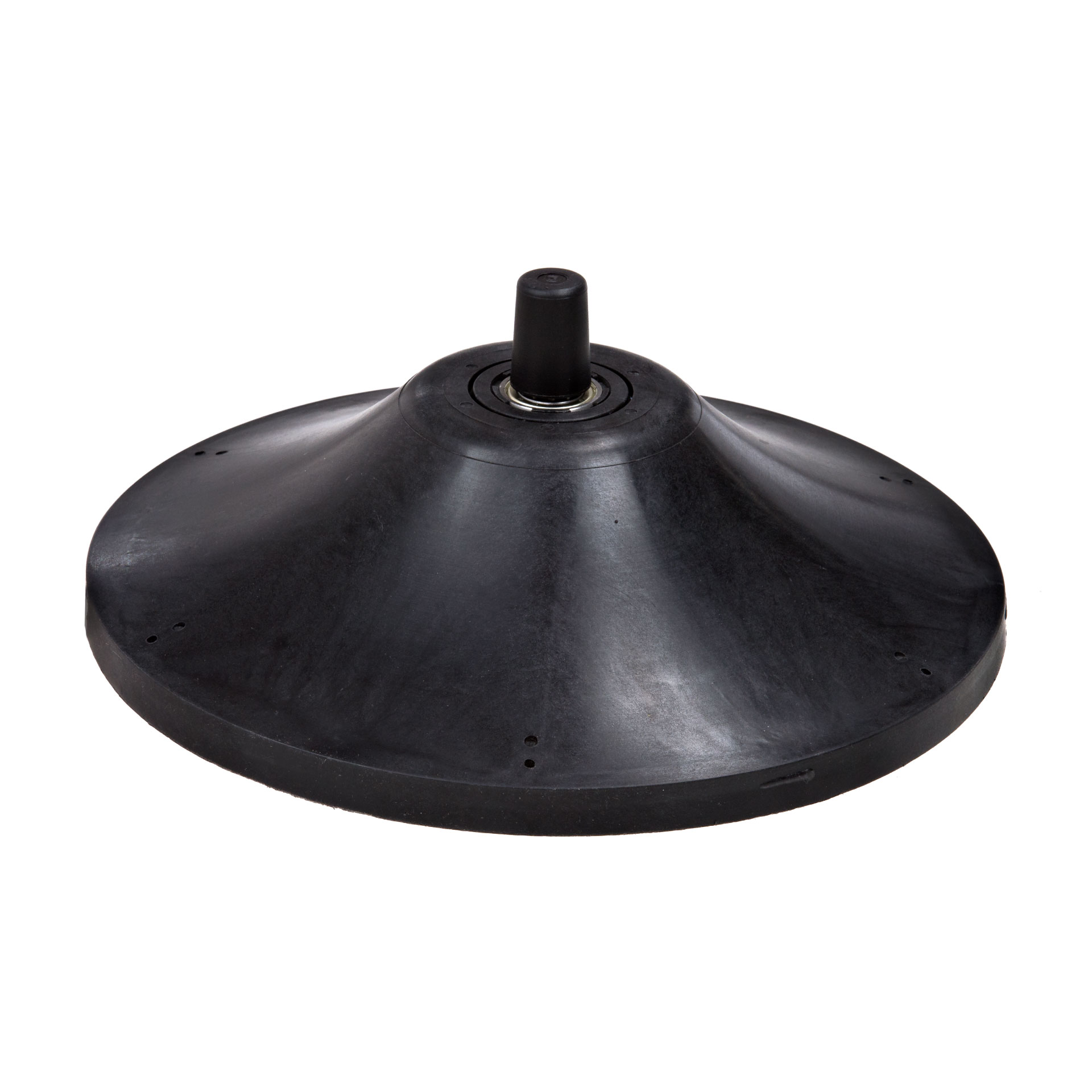

Trumpet swivel base
-
Stable but not visible - base and swivel in one
When you want your design in focus, not the construction, the solution is named Trumpet swivel.
This swivel is mostly used for bigger lounge and recliner chairs.
One of the advantages of the Trumpet swivel is that you do not necessarily need a separate base for the chair – simply attach the swivel to a flat veneer plate to reach high stability for your lounge chair.
For stationary lounge models you can provide extra features with a self-returning base. The Trumpet swivel can be covered with upholstery as well, for a more traditional design.
Built for longevity, Trumpet swivel - as all Mekrapid chair swivels, requires no technical maintenance and complies with European REACH regulations.
Made in Finland, each swivel is quality-checked in our factory to ensure enduring performance alongside your chair.
More about our swivels durability click here!
-
Available as
Swivel/base available with automatic return mechanism. To be upholstered.
-
Name
Product Code
Available As
-
Trumpet swivel / base Automatic return >360°
293 000
Smart Swivel
-
Trumpet swivel / base Rotation >360°
293 555
Swivel-only
-
Trumpet outer ring
293 002
Swivel-only
Specifications

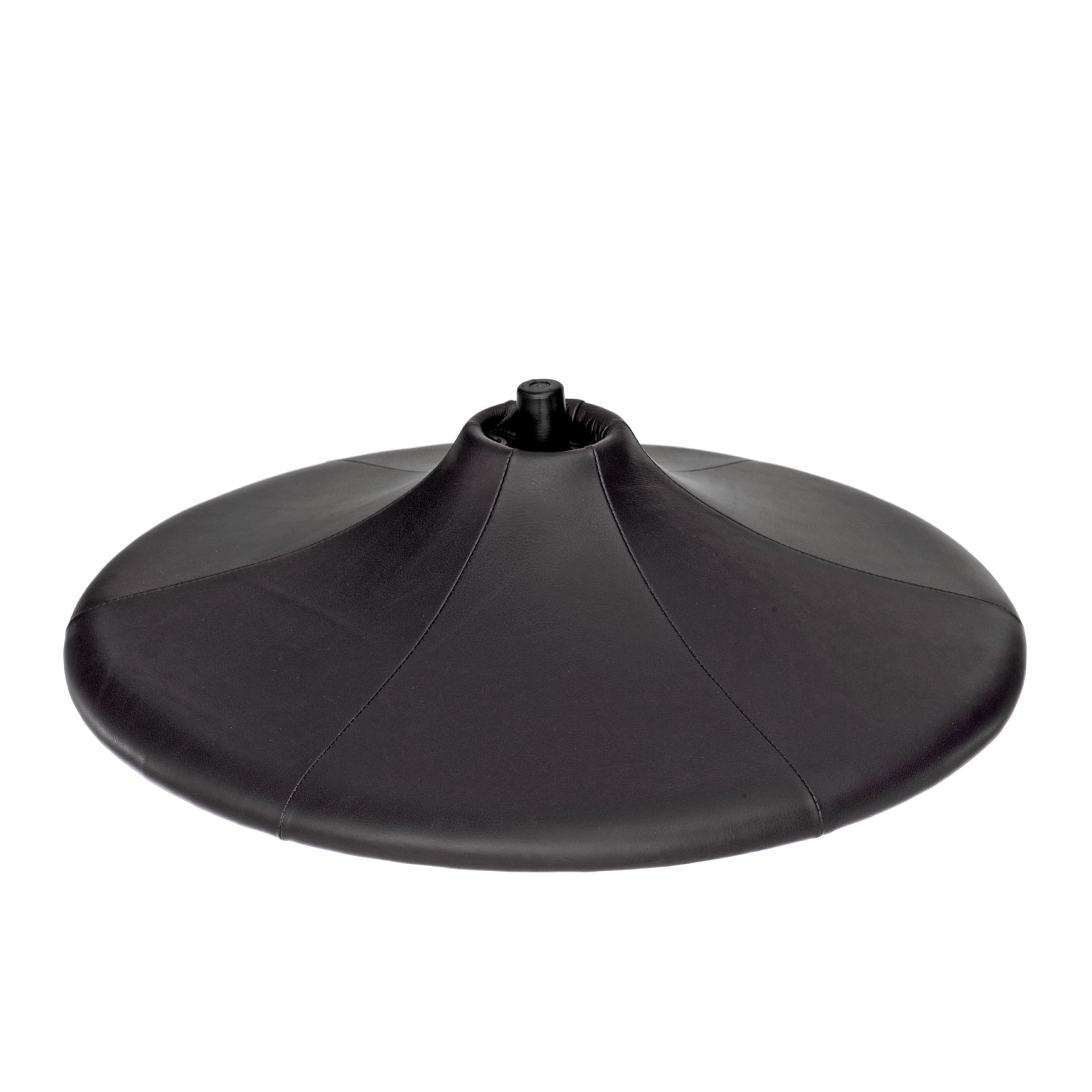

Base to be upholstered, with built-in swivel
Material: composite
Color: black
Patented
Options
Cone
Other cones available on request
Automatic return: light, medium or heavy

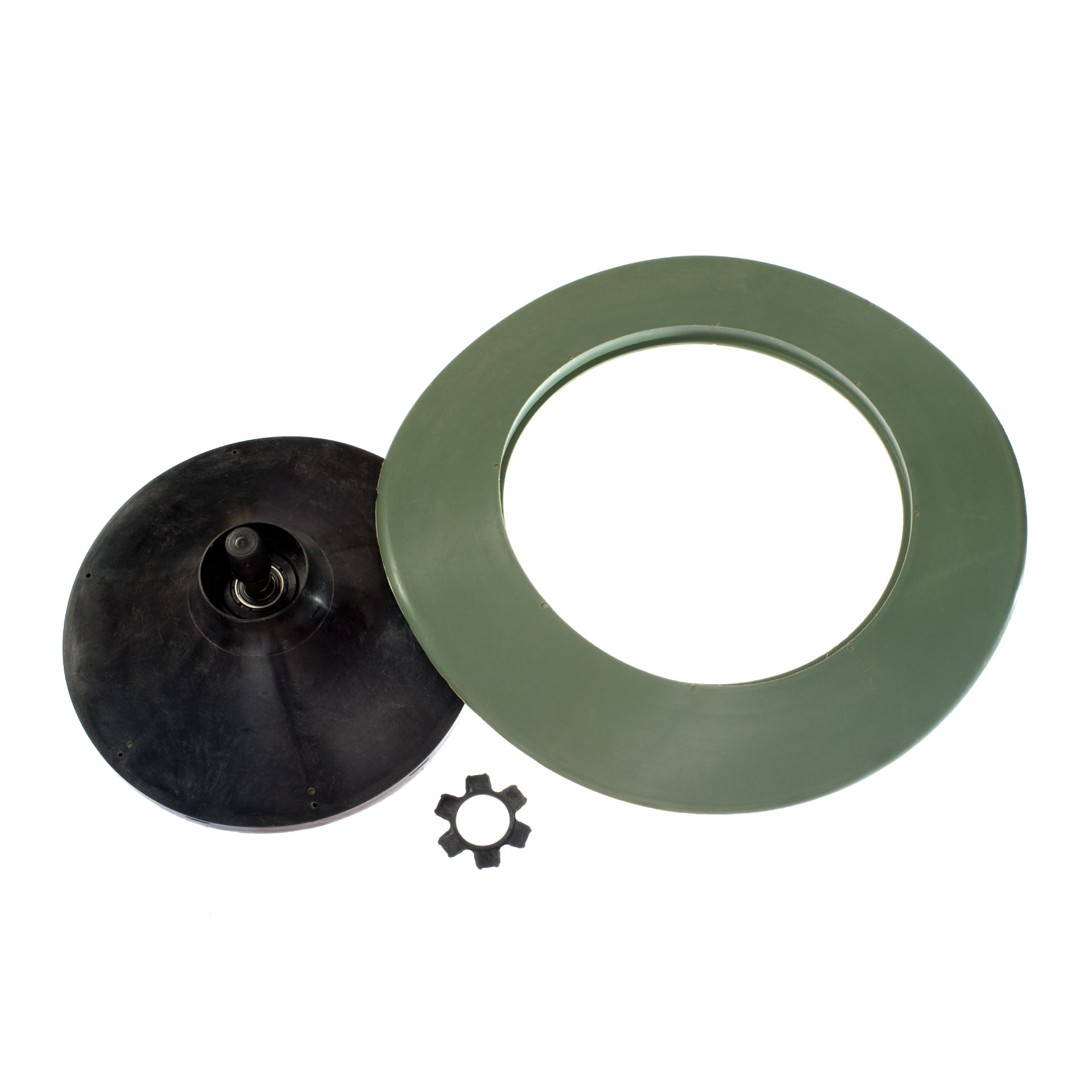

Outer ring for assembling
High cam precision
-
-
Trumpet inside
Technical Support
Swivel to be fastened to veneer plate With 6pcs wooden screws 5.0*40
20mm round veneer plate needed for upholstery
Technical Questions?
Do you need technical support related to our products, their assembly or other technical inquiries?
Please get in touch with Mekrapid's technical team by the e-mail address below:
techsupport(at)mekrapid.fi
Download printer-friendly product sheet
Read here by clicking above or download from the link below.
Trumpet swivel base - product sheet [pdf] [199.1 kB]
-
